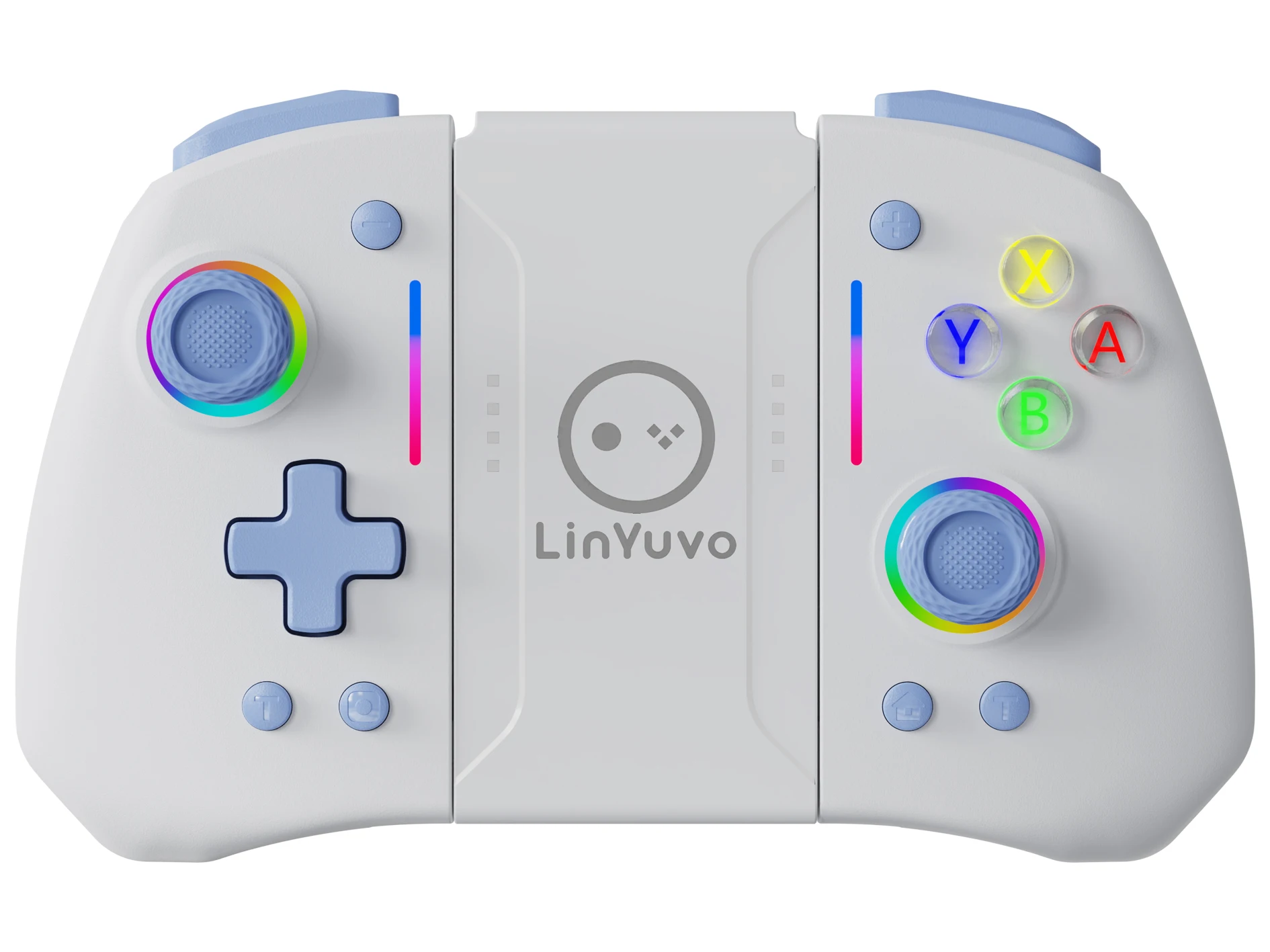

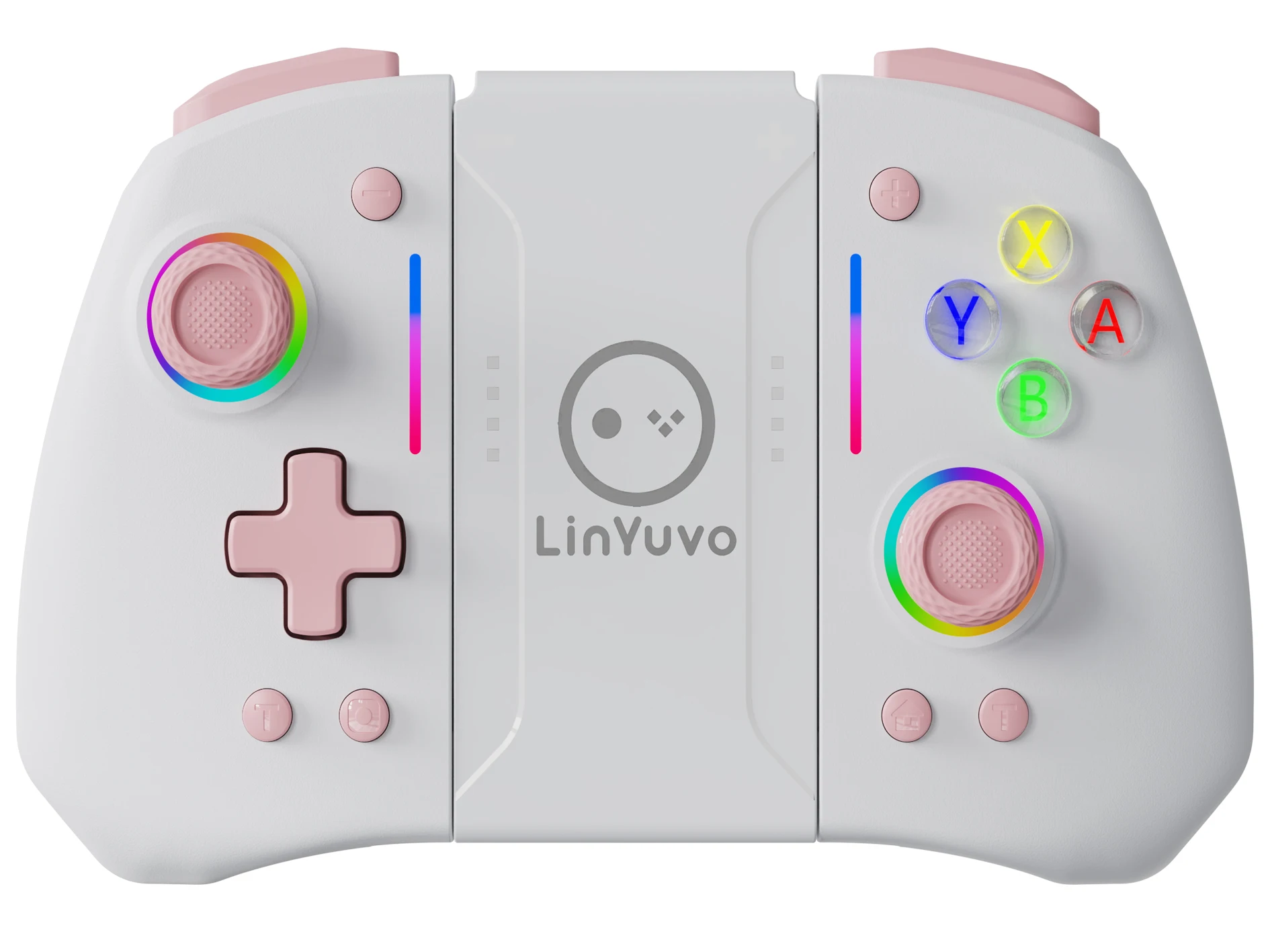

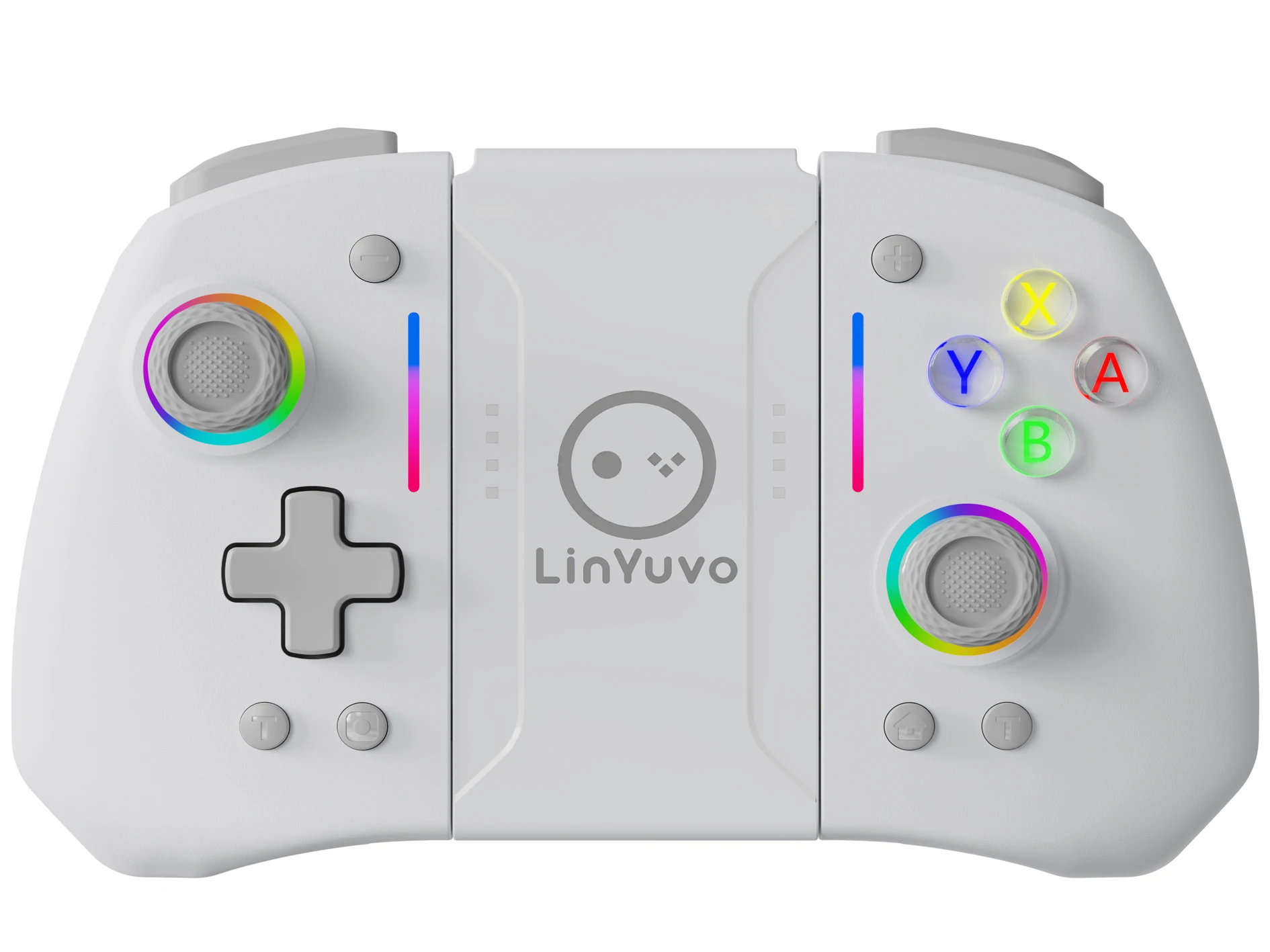

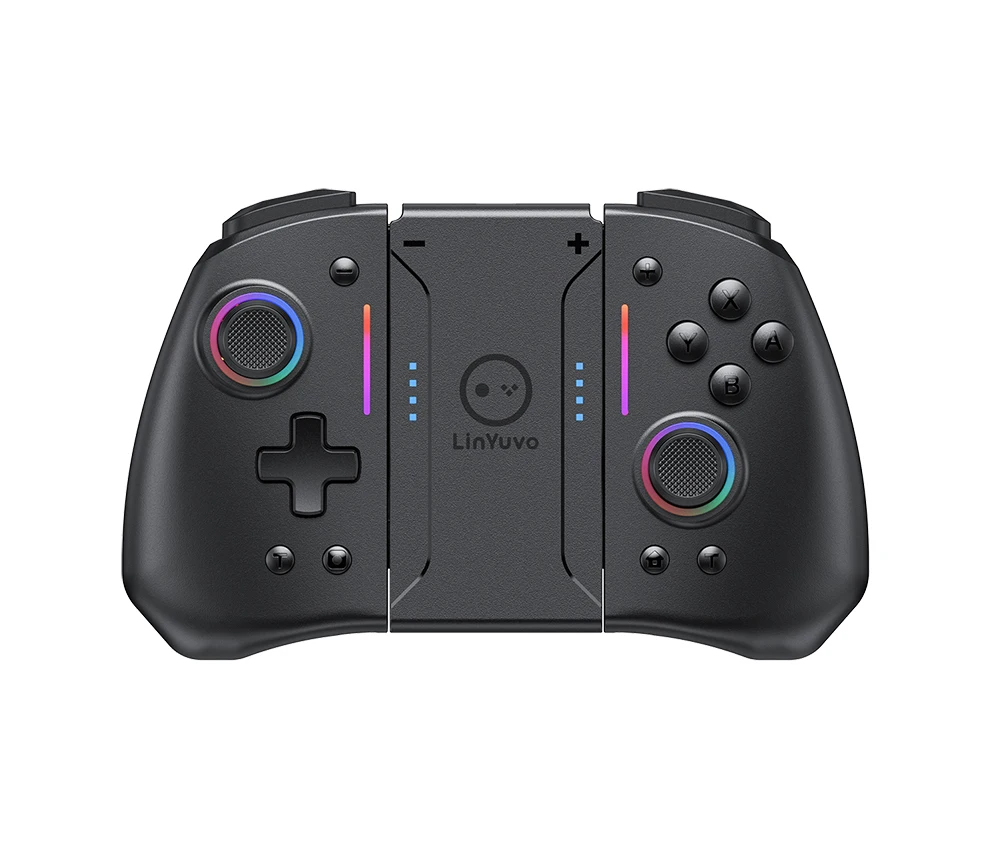

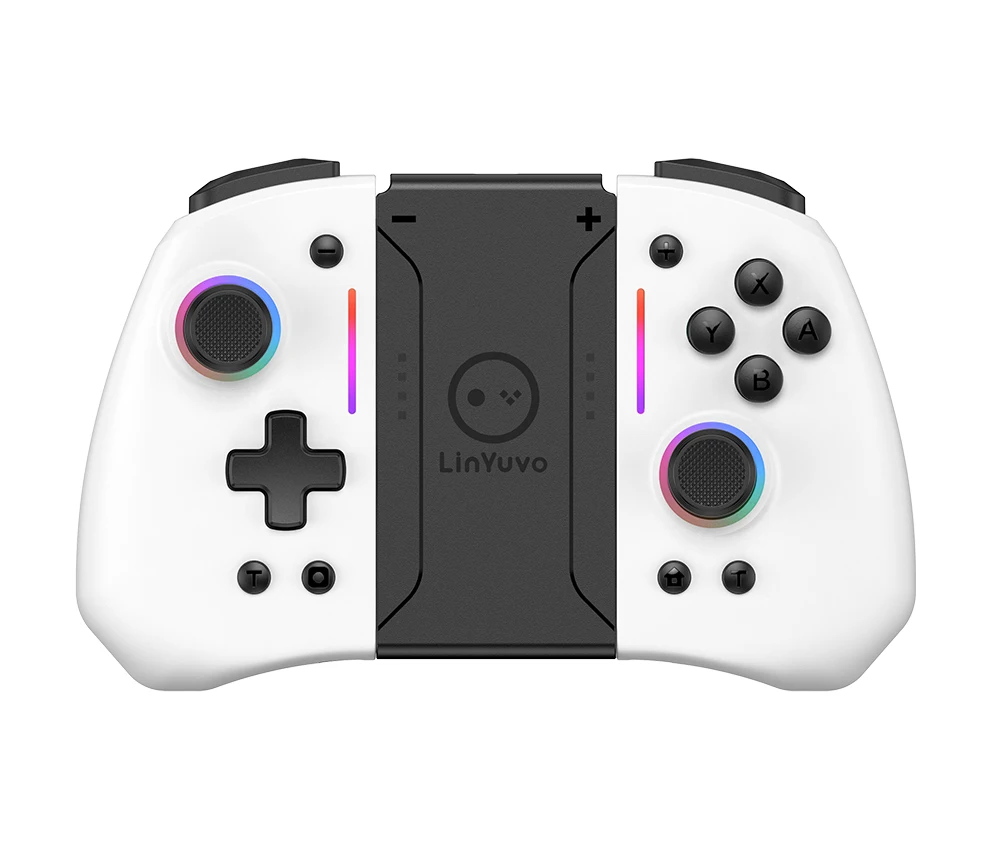

LinYuvo Wireless Controller With Dual Vibration 6axis Wake For NS Switch Joypad Game Handle Grip L/R Joystick Bluetooth Gamepad
Feature:
? Honeycomb Mushroom Head
? Joystick Hardware Ring
? Back Key Macro Function
? 6-Axis Gyro Sensor
? Dual motor
? RGB Lights
? Bluetooth Wireless connection
? Wake up function
? Auto-fire
? Adjustable Vibration
? Charging methods: Charging cable for free/Attach Joypad to the Switch/Joypad charging grip
Product Description:
Transmission medium Bluetooth 2.1
Carrier frequency 2.402-2.480GHz
Protocol Bluetooth BT2.1+EDR
8 LEDs and multiple colorful lights
After the pairing handle enters pairing mode, if there is no successful pairing within 2.5 minutes, it will automatically sleep
Battery: One polymer lithium battery 3.7V/500mAH
Full battery life, continuous operation for 6.5 hours, usage time with colored lights not turned on
Working voltage 3.7V-4.2V
Charging voltage 5V
Temperature cycling and high and low temperature working requirements -10 ?~50 ?
Storage temperature required -20 ?~70 ?
Drop test height 1.2m, 6 surfaces, 2 circular marble floors
The silicone button force is 160g, and the light touch switch force is 160g,
Key lifespan (ABXY, arrow keys, L2, R2 keys) silicone keys 500,000 times. L, R, Home, Camera, +, —, T keys 100,000 times
Product list:1×Charger cable 1×User manual 1×Game controller
1. TURBO settings
Press the TURBO key+A/B/X/Y/L1/L2/R1/R2/cross key to set the TURBO function
(First time) Press the TURBO key+A key to achieve manual TURBO function (press and hold to send continuously)
(Second time) Press the TURBO key+A key to achieve automatic TURBO function (automatic continuous transmission)
(Third time) Press the TURBO key+A key to clear the TURBO function (clear)
Note: Press and hold the individual TURBO button for 5 seconds (vibration prompt) to clear all TURBO button functions
2. TURBO speed adjustment (with three adjustable speeds)
The settings are:
A. Continuously firing 5 times per second (1 level);
B. Continuously firing 12 times per second (2 levels);
C. Continuously firing 20 times per second (3 levels).
Adjustment method: Press the TURBO key and the “+” key to increase the speed by one gear, or press the TURBO key and the “-” key to decrease the speed by one gear.
3. Motor vibration adjustment function
? The vibration keys on the left and right back motors have the same function, and both can adjust the vibration intensity of the motors;
? The motor vibration is divided into five levels, 100%, 75%, 50%, 30%, and off. It is adjusted in a cycle. After successful adjustment, the motor vibration for this level is 0.5 seconds. After turning off, the motor is turned on and the gear is memorized for adjustment.
